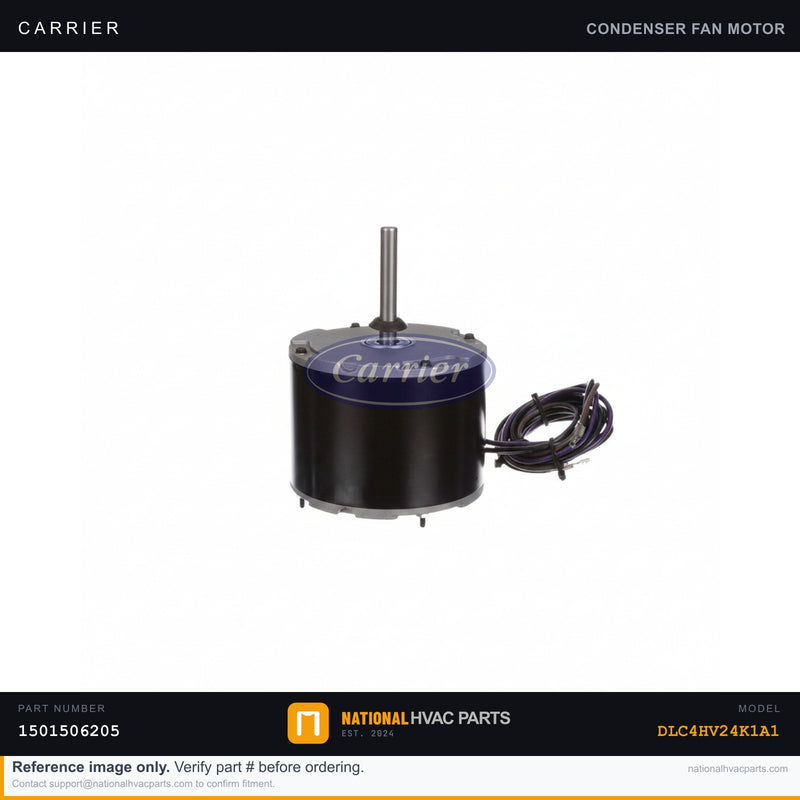

OEM Carrier Condenser Fan Motor for DLC4HV24K1A1 — 1501506205
Carrier

OEM Carrier Condenser Fan Motor for DLC4HV24K1A1 — 1501506205

SKU: CARRIE-DLC4HV24K1A1-FAN_MOTOR-1501506205 Brand: Carrier

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014
SAM.gov Registered
Govt POs Accepted

OEM Carrier Condenser Fan Motor for Model DLC4HV24K1A1 — Part #1501506205

This is the factory-specified OEM condenser fan motor for the Carrier DLC4HV24K1A1 split-system condenser. The condenser fan motor drives the outdoor fan blade, pulling air across the condenser coil to reject heat from the refrigerant. When this motor fails, the system loses the ability to dissipate heat — leading to compressor overheating, high-pressure lockout, or a complete no-cool condition. Common failure symptoms include a humming outdoor unit with a stationary fan blade, intermittent shutdowns on hot days, or a tripped high-pressure limit switch.

  • Specs: OEM Part Number 1501506205 | Factory-matched HP, RPM, and rotation direction | Correct shaft diameter and mounting configuration for DLC4HV24K1A1 | Pre-wired leads for direct drop-in replacement
  • OEM vs Generic: This OEM motor is wound and balanced to Carrier's exact factory specifications, ensuring proper airflow CFM across the condenser coil. Aftermarket motors often carry broader tolerance ratings on RPM and rotation, which can reduce system efficiency and shorten compressor life over time.
  • Install Difficulty: 3/5 — Requires disconnecting power at the disconnect box and discharging any residual voltage. Tools needed: nut driver set, wire stripper, multimeter, and zip ties. Note the existing fan blade pitch and wire routing before removal. Reuse the existing fan blade if undamaged, ensuring proper torque on the set screw.
  • Warranty: Backed by Carrier's OEM factory warranty. In-stock units ship same business day from our warehouse when ordered before the daily cutoff.

Compatibility: This condenser fan motor is engineered specifically for the Carrier DLC4HV24K1A1 condenser unit. Always verify your unit's data plate for HP, voltage, and RPM ratings before ordering to confirm an exact match. Our HVAC parts specialists are available to verify fitment — reach out before you order for complete peace of mind. Order today and receive same-day shipping.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email info@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Fan Motor fit my Carrier DLC4HV24K1A1 — 1501506205?
Yes. This is the factory-specified OEM fan motor for the Carrier DLC4HV24K1A1 — 1501506205. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the fan motor on my Carrier DLC4HV24K1A1 — 1501506205?
Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.
My AC fan isn’t spinning. What part do I need?
Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.
Is this fan motor compatible with Bryant or Payne too?
Many Carrier parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Carrier fan motor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
