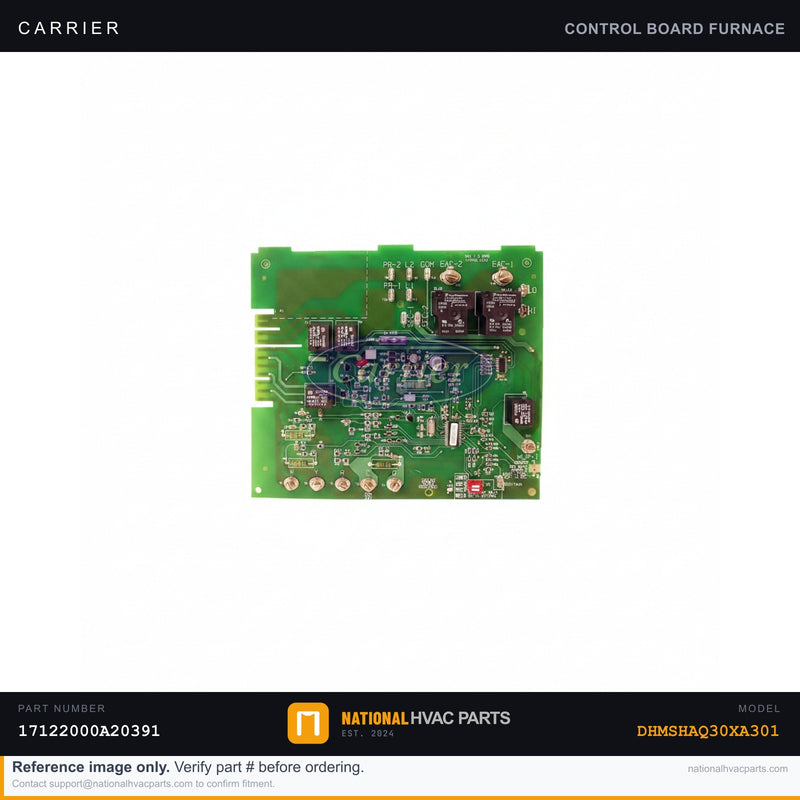

OEM Carrier Main Control Board 17122000A20391 for Model DHMSHAQ30XA301

This is the factory OEM main control board (part number 17122000A20391) for the Carrier DHMSHAQ30XA301 system. The main control board is the central brain of your HVAC unit — it orchestrates every operational sequence including thermostat signal interpretation, blower and compressor staging, safety circuit monitoring, and fault code diagnostics. When the control board fails, symptoms can range from a completely unresponsive system to intermittent lockouts, incorrect staging, or error codes that cannot be cleared. Replacing the board with a genuine OEM unit ensures all logic, timing, and safety thresholds match factory specifications exactly.

  • Specs: OEM part number 17122000A20391 | Factory-programmed logic | 24V control circuit compatible | Direct drop-in replacement with matching terminal layout for Carrier DHMSHAQ30XA301
  • OEM vs Generic: Generic control boards frequently use off-spec firmware and lower-grade components that can misinterpret thermostat signals or fail safety lockout sequences. This OEM board is factory-tested and guaranteed to match original performance and longevity.
  • Install difficulty: 3/5 — Disconnect power at the breaker and verify zero voltage before handling. Tools needed: flathead and Phillips screwdrivers, needle-nose pliers, phone or camera to document all wiring connections prior to removal. Transfer wiring harnesses one at a time to avoid miswiring. Some boards require a firmware initialization sequence on first power-up — consult the service manual.
  • Warranty: 1-year OEM factory warranty against defects in materials and workmanship. Ships same business day from our climate-controlled warehouse in anti-static packaging.

Compatibility: Designed specifically for the Carrier DHMSHAQ30XA301. Verify your existing board's part number against 17122000A20391 before ordering. If you're unsure of fitment, our HVAC parts specialists can confirm compatibility before your order ships — contact us today and get back up and running fast.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email info@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Control Board fit my Carrier DHMSHAQ30XA301?
Yes. This is the factory-specified OEM control board for the Carrier DHMSHAQ30XA301. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the control board on my Carrier DHMSHAQ30XA301?
Difficulty: Advanced (1–2 hrs)
Step 1: Turn off breaker. Step 2: PHOTOGRAPH all wire connections before touching anything. Step 3: Label each wire with tape. Step 4: Disconnect all wires, remove old board. Step 5: Mount new board, reconnect all wires matching your photo exactly. Step 6: Restore power and test all modes. Exact part number match is critical.
My HVAC system is completely dead. What could be wrong?
Completely dead HVAC (no LED on board) = failed control board or blown fuse. Check board fuse first (3A or 5A, costs $1–$5). If fuse is good and board has power but no LED, board is dead. Always photograph wiring before replacing.
Is this control board compatible with Bryant or Payne too?
Many Carrier parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my Carrier control board?
OEM essential. Control boards are model-specific with precise firmware and connector layouts. Aftermarket boards rarely match all functions and can cause intermittent failures or safety issues. Always match the exact OEM part number.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
