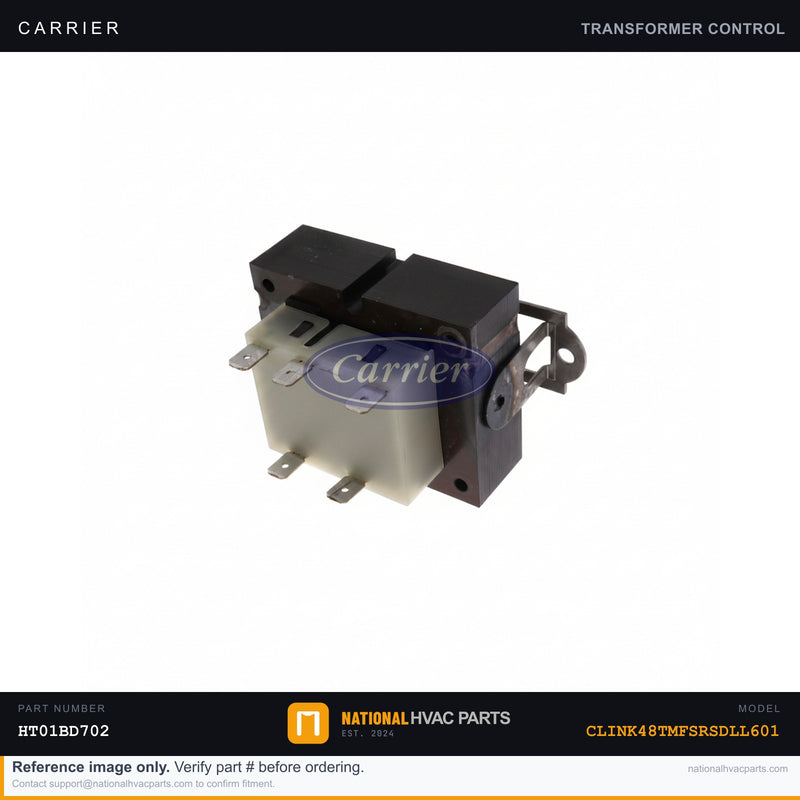

OEM Carrier 40VA Control Transformer HT01BD702 for Model CLINK48TMFSRSDLL601

This is the factory OEM replacement transformer (part number HT01BD702) for the Carrier CLINK48TMFSRSDLL601 packaged unit. The transformer steps down line voltage from 120V to 24V to power the entire low-voltage control circuit — including the thermostat, contactor coil, and control board. When it fails, the system goes completely silent: no thermostat response, no contactor click, and no fan or compressor operation. A blown transformer is often caused by a shorted control wire or a failed component drawing excess current, so always inspect the low-voltage circuit before installing a replacement.

• Specs: 40VA rating | 120V primary / 24V secondary | Factory-matched OEM construction | Part number HT01BD702
• OEM vs Generic: The OEM HT01BD702 transformer is wound to exact VA and voltage tolerances required by the Carrier CLINK48TMFSRSDLL601 control board. Generic transformers can run under-rated, causing premature burnout and nuisance tripping of the built-in thermal fuse.
• Install difficulty: 2/5 — Disconnect power at the breaker and verify zero voltage with a multimeter before proceeding. Tools needed: flathead and Phillips screwdrivers, wire stripper, multimeter. Label or photograph all wiring connections before removal. The transformer typically mounts with two screws inside the control panel.
• Warranty: 1-year OEM factory warranty against defects. Ships same business day from our stocked warehouse — order by 3 PM local time for same-day dispatch.

Compatibility: Designed as a direct OEM replacement for the Carrier CLINK48TMFSRSDLL601 packaged unit. Verify your existing transformer's VA rating and primary/secondary voltages on the data plate before ordering. Our fitment team is available to confirm compatibility — don't hesitate to reach out before you buy.
