1/3 HP Condenser Fan Motor 208-230V 1075 RPM — Universal HVAC Replacement
National HVAC Parts

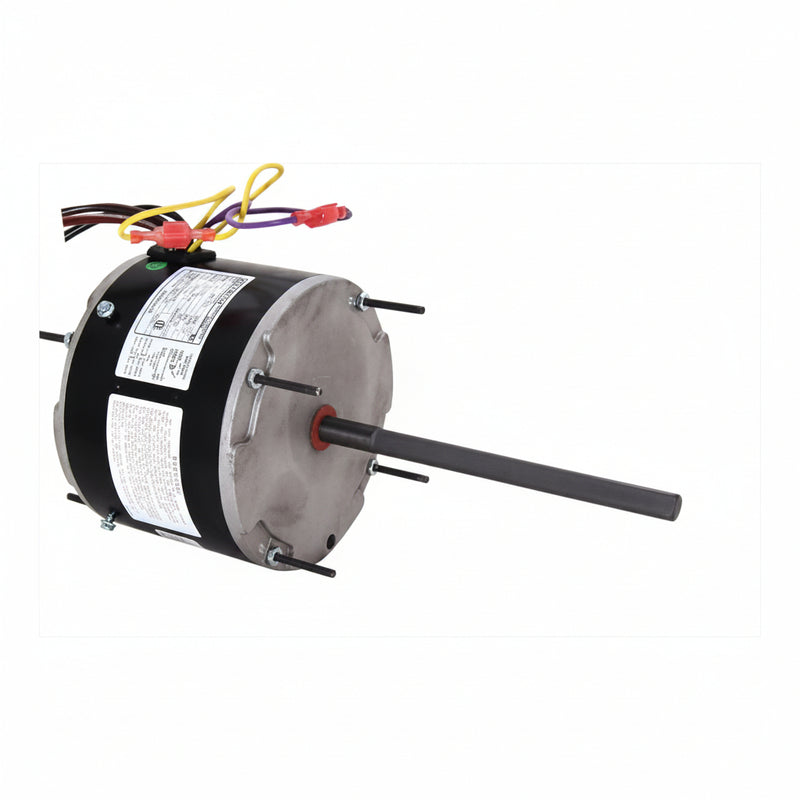

1/3 HP Condenser Fan Motor 208-230V 1075 RPM — Universal HVAC Replacement

SKU: NHVAC-CFM-1-3HP Brand: National HVAC Parts
$109.99 $164.99

Order before 3PM CST — ships same day.
Standard delivery 2-5 business days. Express options at checkout.

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Universal 1/3 HP condenser fan motor rated 208-230V at 1075 RPM. Direct replacement for larger residential condensers 3-4 tons. The condenser fan motor drives the fan blade on your outdoor AC unit — it pulls air across the condenser coil to release heat. When it fails, your system overheats and shuts down on high-pressure safety.

Symptoms of failure: Outdoor fan won't spin, fan spins slowly, loud grinding or squealing from outdoor unit, AC runs but doesn't cool, motor hot to the touch, system trips high-pressure switch.

  • Horsepower: 1/3 HP
  • Voltage: 208-230V AC
  • RPM: 1075
  • Frame: 48 Frame
  • Shaft: 1/2" x 6" (standard)
  • Rotation: Reversible (CW/CCW)
  • Bearing: Sleeve bearing, permanently lubricated
  • Application: larger residential condensers 3-4 tons
  • Warranty: 1-year replacement warranty

Install difficulty: 3/5 — Turn off power at disconnect. Remove fan blade (reverse-threaded nut). Remove 4 mounting bolts. Swap motor, remount, reattach fan blade. Reconnect wires (match colors). 30-45 minutes. Tip: mark fan blade orientation before removal.

Shipping Information

  • Orders placed before 3PM CST ship same business day
  • Standard delivery: 2-5 business days
  • Express shipping available at checkout
  • Free shipping on orders over $75
  • Tracking number emailed upon shipment

Return Policy

  • 30-day returns on unused parts in original packaging
  • Electrical parts (capacitors, contactors, control boards) are final sale once installed
  • Email info@nationalhvacparts.com to initiate a return
  • Refunds processed within 5-7 business days

Frequently Asked Questions

Does this Condenser Fan Motor fit my National HVAC Parts 1/3 HP Condenser Fan Motor 208-230V 1075 RPM — Universal HVAC Replacement?
Yes. This is the factory-specified OEM condenser fan motor for the National HVAC Parts 1/3 HP Condenser Fan Motor 208-230V 1075 RPM — Universal HVAC Replacement. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.
How do I replace the condenser fan motor on my National HVAC Parts 1/3 HP Condenser Fan Motor 208-230V 1075 RPM — Universal HVAC Replacement?
Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.
My AC fan isn’t spinning. What part do I need?
Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.
Is this condenser fan motor compatible with Bryant or Payne too?
Many National HVAC Parts parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.
Should I use OEM or aftermarket for my National HVAC Parts condenser fan motor?
OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
How fast does National HVAC Parts ship?
Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
